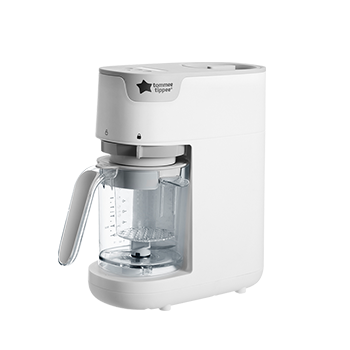

Quick-cook Baby Food Maker

Category

Getting Started

Do you have a question about the Tommee Tippee Quick-Cook Baby Food Maker? Find the answers here.

Parts Guide

A step by step guide to all component parts, how they fit together and what they do.

Labeled diagram of Quick cook parts guide Labels A-J

Setting up your Quick-Cook Baby Food Maker for first use:

Before using your baby food maker we recommend cleaning all the parts as follows:

WARNING! Handle the blade carefully as it is extremely sharp.

1. Remove the blade by holding the blade tab inside the unit while turning the locking ring on the bottom of the container. This will remove the locking ring and the blade will split into two parts. (Pictures 1, 2, 3).

Steps 1 - 3 labeled diagram of how to set up Quick cook blender with in-depth steps labeled below

To re-assemble, reverse these steps.

2. Wash the blade, jug, basket, sealing ring and lid in soapy water then dry and reassemble. Place your baby food maker unit on a clean, dry kitchen work surface.

3. Place the basket inside the jug, place the lid on jug in the correct orientation and lock in place using the locking dial (Pictures 4, 5).

Steps 4 - 5 labeled diagram of how to set up Quick cook blender with in-depth steps labeled below

4. Unlock the water tank by rotating the lid anti-clockwise. Fill the water tank with 350ml of cold water, replace the cap and lock it in place (Picture 6). Make sure that the water level is not filled above the inside edge of the water tank.

Steps 6 labeled diagram of how to set up Quick cook blender with in-depth steps labeled below

5. Plug your baby food maker into a mains power supply and turn on the power. Press the start button to turn on the unit and the LCD display will illuminate (Picture 7).

Steps 7 labeled diagram of how to set up Quick cook blender with in-depth steps labeled below

6. Set the steam time to 30 minutes using the + buttons (Pictures 8, 10)

Steps 8-9 labeled diagram of how to set up Quick cook blender with in-depth steps labeled below

7. Press the start button to start (Picture 11).

Steps 10 labeled diagram of how to set up Quick cook blender with in-depth steps labeled below

The unit will now run the steam cycle automatically.

8. When the cycle has finished, your baby food maker will beep and the LCD display will turn off. Turn off the power supply, unplug your baby food maker and allow it to cool completely. Unlock the jug and pour away any residual water.

9. Clean the jug and steamer basket following the cleaning instructions.

10. Pour away any remaining water from the water tank by tipping the unit sideways over a sink. Wipe your baby food maker clean and dry and it's now ready to use.

Using your machine

For your child's safety always check food temperature before feeding. Your Baby Food Maker can steam and blend vegetables, fruits (peeled and cored/pips removed), meats and fish (with bones removed). You must cut all food into approximately half inch (1-2cm) cubes before placing it into the jug or basket for cooking. For cooking times see below. For recipes visit tommeetippee.com.

During the steaming process hot steam passes through the vent at the back of your Baby Food Maker, so position it away from walls and make sure it is not underneath any overhanging shelves or cabinets.

1. Place your Baby Food Maker on a flat dry kitchen work surface. Place the jug or basket with diced food into the base (picture 4) and lock in place using the locking dial (picture 5). Steam no more than 200 grams in one cycle. Fill the water tank with 12 fl oz (350ml) of cold water and replace the cap (Picture 6).

Steps 4-5 labeled diagram of how to use Quick cook blender with in-depth steps labeled below
Steps 6 labeled diagram of how to use Quick cook blender with in-depth steps labeled below

2. Plug your Baby Food Maker into a mains power supply. The unit will beep. Press the start button to turn it on. The LCD display will light up.

To set an automatic steam to blend cycle

1. Use the jug with no basket and make sure the lid is in the correct orientation.

2. Press the mode button and choose the steam option. Set the steam time using the +/- buttons for a maximum steam time of 30 minutes.

3. Press the mode button and choose the blend option. Set the blend time using the +/- buttons for a maximum blend time of 2 minutes.

4. Press the start button to start. Your Baby Food Maker will now run the steam and blend cycle automatically.

5. When cooking meat, it is extremely important to pause the unit every 10 minutes and stir thoroughly. This is to ensure even cooking

When setting the automatic steam and blend cycle, the blades will rotate once every 2 minutes to move food around the container.

To set a steam only cycle

If you’re steaming food, we recommend that you use the basket, especially if you want to make meals with a chunkier texture.

Please make sure the lid is in the correct orientation.

To steam without the basket

1. Press the mode button and choose the steam option. Set the steam time using the +/- buttons for a maximum steam time of 30 minutes.

2. Press the start button to start. It will now run a steam cycle.

To steam with the basket

1. Set the steam time using the +/- buttons for a maximum steam time of 30 minutes.

2. Press the start button to start. The unit will now run a steam cycle.

To set a blend only cycle

1. Add food to the jug without the basket in place. Make sure the lid is in the correct orientation.

2. Press the mode button and choose the blend option. Set the blend time using the +/- buttons for a maximum blend time of 2 minutes.

3. Press the start button to start. The unit will now run a blend cycle.

To pulse the action

You can set a pulse action during blending to help you control the texture of the food.

1. Press the start button, then mode and choose the blend only option.

2. Select the time (using 5 second intervals) and press start. The unit will pulse once.

3. Repeat the above process for a further pulse.

To steam and blend using the basket

Using the basket to steam food before blending reduces the amount of water in the food and makes it easier to achieve a chunky texture.

1. Place food chopped into approximately half inch (1-2cm) cubes in the steamer basket and make sure that the lip of the basket is resting in place on the edge of the jug. Make sure the lid is in the correct orientation.

2. Set the steam time using the +/- buttons for a maximum steam time of 30 minutes.

3. Press the start button to start. The unit will now run a steam cycle.

4. Wait for the steam basket to cool, unclip the lock and remove from the unit.

5. Pour away any water from the jug then transfer the steamed food into the jug.

6. Make sure you change the orientation of the lid orientation to show that the food is now in the jug.

7. Press the mode button and choose the blend option. Set the blend time using the +/- buttons for a maximum blend time of 2 minutes.

8. Press the start button to start. The unit will now start a blend cycle. When the cycle has finished the unit will beep and the LCD display will turn off.

9. Leave the unit to stand for 2 mins before unlocking the jug and serving up the food.

10. Take care when removing the jug and lid as steam may still be present and the jug may be hot to touch.

When you’re steaming food, water will collect in the jug. In stage 1 weaning, where food consistency should be a smooth puree we recommend that you stir in this nutrient rich water.

In later weaning stages, when you want food with a thicker texture, we recommend removing some or all of this water depending on your baby’s preference.

To pause your Baby Food Maker while cooking

To pause cooking mid cycle, press and hold the mode button for three seconds until your Baby Food Maker beeps. The LCD will flash.

This will pause the cycle indefinitely.

You can remove the jug while cooking is paused, but it will be hot, so wait until it is cool.

Press the start button to continue the cycle.

To cancel

To stop steaming or blending mid cycle, press the start button for three seconds until your Baby Food Maker turns off.

Smart Memory Function

If you want to use the Baby Food Maker again within 30 minutes, press the start button to switch it on, then press and hold ‘+’ and ‘-‘ button at the same time. Press the start button again and it will repeat the last cycle.

Please note that the smart memory function cannot be used with steam and blend with basket.

When you've finished using your Baby Food Maker

Turn your Baby Food Maker off at the power supply and unplug it. Carefully disassemble the blade from the jug and wash all parts in warm soapy water.

If you want to prepare another batch of food straight away, make sure that you top up the water tank. You must wait for the unit to cool before topping up the water tank.

Steaming and blending guide

Steaming times table
Blending times table

CLEANING & MAINTENANCE

Cleaning and descaling

Please clean your Baby Food Maker after every use and descale regularly.

To clean your Baby Food Maker

1. Turn off the power supply, unplug the unit and allow it to cool down completely before cleaning.

2. Before first use and after every use wash the jug, lid and basket in warm soapy water or use a dishwasher (top shelf only) and dry thoroughly.

3. Wash the blade, sealing ring and locking ring in warm soapy water and dry thoroughly.

PLEASE NOTE THE BLADE, SEALING RING AND LOCKING RING ARE NOT DISHWASHER SAFE.

WARNING! Handle the blade carefully as it is extremely sharp. Take care handling the sharp blade, when emptying the jug and during cleaning.

After every use wipe the jug housing with a damp cloth but do not submerge in water.

Do not clean with abrasive cleaners or allow to come in to contact with solvents or harsh chemicals as this could cause damage.

To descale your Baby Food Maker

You should de-scale the water tank of your Baby Food Maker every 4 weeks or sooner if you notice limescale. Living in a hard water area can produce limescale more quickly than other areas, so you may need to descale more often.

1. Unplug the unit and allow to cool. After each use pour away any remaining water from the water tank by tipping the unit sideways over a sink.

2. Use a descaler that is suitable for use with stainless steel and use as per the manufacturer’s guidelines.

3. Or you can use white vinegar to descale your unit. Please use as per manufacturer’s guidelines.

4. Once you have descaled the water tank, follow the set-up instructions to perform a cleaning cycle.

5. If limescale is still present in the water tank, you may need to repeat the descaling process.

DO NOT use metal objects or scourers to clean your unit.

Can I clean the parts in the dishwasher?

The jug can be cleaned on the top shelf of your dishwasher but the blade and other parts need a bit more TLC, so they need to be hand washed.

Can I disassemble the blade for cleaning?

Yes. But please take care to reassemble the parts correctly as per the setup guide we’ve given you

What does descaling do?

The descaling process removes deposits of calcium and other minerals within the system that may affect its performance.

How do I descale my blender?

We recommend using a descaler that is suitable for use with stainless steel and follow the manufacturer instructions. However, you can use white vinegar if you prefer following the guidelines.

How often should I descale?

This really does depend on the area in which you live. If the water in your area is hard then you may need to descale every 14 days. If it’s medium, then you’ll need to descale every 21 days and if the water is soft it’s around every 28 days. If you do notice any limescale before the descale is due, you can descale your steriliser earlier or more frequently. You can find out the quality of your water from your water provider.

TROUBLESHOOTING

Do not use the unit for anything other than the intended use.

This unit is not suitable for:

  • Cooking rice, noodles and pasta
  • Heating liquids, soup or water
  • Chopping hard ingredients such as ice cubes and sugar lumps
  • Cooking frozen foods
  • Defrosting and reheating food or keeping food warm
  • Heating baby food jars
  • Heating bottles
Do not use before water tank is filled with water, unless using the blend only cycle.
During the automatic steam and blend cycle, the blades will turn to circulate the food. The unit is designed to do this and is a normal part of cycle.
Help, my Baby Food Maker won't start or blend

Check the that you have the jug lid in the correct position.

If you are using the jug without the basket make sure the larger image of the jug shown above (r) is facing forwards towards the handle.

If you are using the basket and the jug make sure the smaller image basket (s) is facing forwards towards the handle.

Labeled diagram of Quick cook parts guide Labels A-S

What does E1 on the display mean?

In the unlikely event that the water tank boils dry during steaming your Baby Food Maker will beep and the LCD will display error E1.

If this happens you will need to re-start the cycle and replace the food.

Unplug the unit, allow the unit to stand for 2 minutes before filling the water tank with 12 fl oz (350ml) of cold water. Re-set the cooking cycle and start again.

What does E2 on the display mean?

If you use the smart memory function but have changed the lid orientation between uses, your Baby Food Maker will beep and the LCD will display error message E2.

Reset the steam or blend mode and time and make sure the lid is in the correct orientation for the cooking mode you choose.

Help my Baby Food Maker isn’t working as well as it used to

If you find that your machine is not working as efficiently as it was, we would recommend carrying out the descaling process as there may be a build-up of limescale.

I don’t think there is enough steam, what can I do?

A lack of steam is usually an indication that the water tanks needs to be descaled. Descaling your machine will help keep everything in working order. We recommend you descale the water tank approximately every 4-weeks. But if you notice limescale earlier than this due to living in a hard water area or due to you loving your machine so much that you use it several times a day, just like your kettle, you may need to descale sooner. Four weeks is purely a guide.

Living in a hard water area can produce limescale more quickly than other areas. If you’re not sure of your water quality, you can check this out through your water provider. We recommend using a descaler that is suitable for use with stainless steel and following the manufacturer instructions. However, you can use white vinegar if you prefer and follow the guidelines provided.

There are still lumps in the food?

If you’re finding that lumps are still in the food after blending, try adding some cooled water and blending for a short time again. To prevent this happening on the next blend cycle, add the desired amount of water before you begin.
